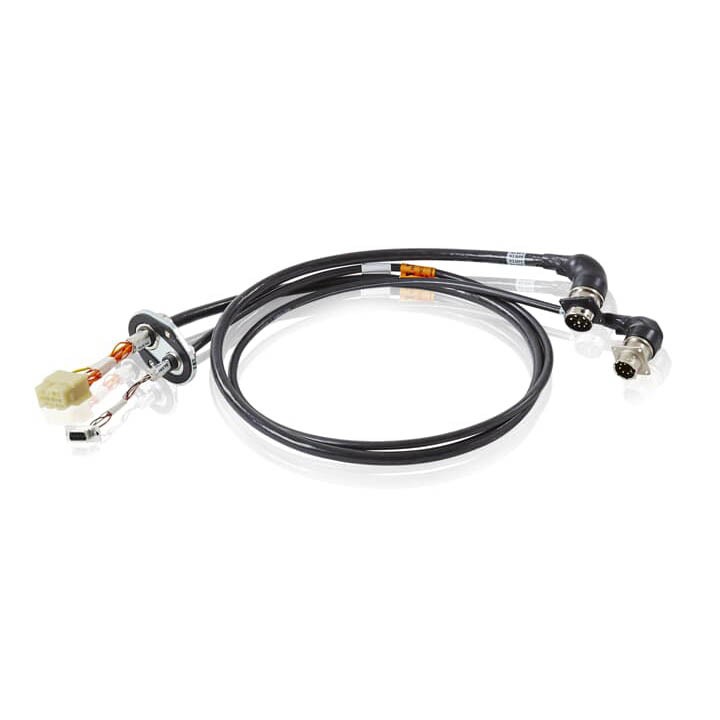

ABB robot parts ABB robot cable 3HAC14139-1

ABB robot parts ABB robot cable 3HAC14139-1

ABB offers a wide range of industrial robots, and the number of parts can vary depending on the specific model and configuration. However, I can provide you with a general overview of the major components of an ABB robot.

Robot Arm: The robot arm is the main component responsible for performing tasks and manipulating objects. It consists of multiple interconnected segments or links with various joints, allowing for movement and flexibility.

Joints: ABB robots typically have multiple joints that enable the robot arm to move in different directions. The number of joints can vary depending on the robot model, but it is common for industrial robots to have six or more joints.

End Effector: The end effector, also known as the robot's tool or gripper, is attached to the robot arm and used to interact with objects in the environment. The specific type of end effector can vary depending on the application, and there are numerous options available, including grippers, suction cups, welding torches, and more.

Control System: ABB robots have a control system that manages the robot's movements and overall operation. This includes the robot controller, which is responsible for processing commands, monitoring sensors, and coordinating the robot's actions.

Sensors: ABB robots may be equipped with various sensors to provide feedback and enable the robot to interact with its environment more effectively. Common sensors include vision systems for object detection and tracking, force/torque sensors for detecting contact forces, and proximity sensors for safety purposes.

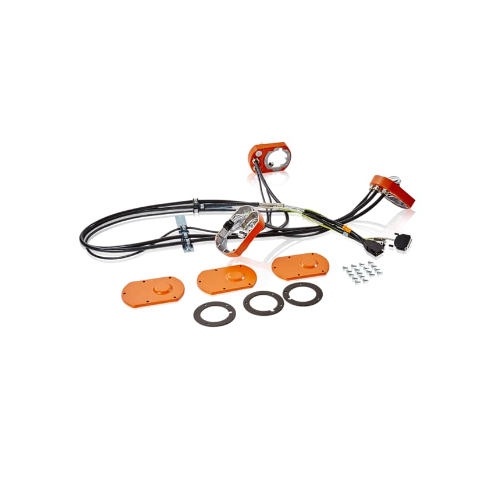

Cables and Connectors: ABB robots have a complex network of cables and connectors that transmit power, signals, and data between the robot arm, control system, and various sensors. These cables and connectors are crucial for maintaining communication and powering the different components of the robot.

Please note that this is a general overview, and the specific design and configuration of an ABB robot can vary depending on the model and application.
